International Bitumen Company Ltd. mine and plant
A 1947 flow diagram
Fractionating tower (centre)
  • Karl Clark at work on his prototype separation plant, 1929, Source: Glenbow Archives, ND-3-4596a

    Karl Clark begins his long career investigating Alberta’s oil sands.

    Karl Clark at work on his prototype separation plant, 1929
    Source: Glenbow Archives, ND-3-4596a

  • Robert Fitzsimmons at Bitumount, ca. 1920s, Source: Provincial Archives of Alberta, A3358

    Robert Cosmas Fitzsimmons visits the Athabasca River and purchases an oil lease.

    Robert Fitzsimmons at Bitumount, ca. 1920s
    Source: Provincial Archives of Alberta, A3358

  • Oil sands separation plant at Dunvegan Yards, Edmonton, 1925, Source: Provincial Archives of Alberta, A3526

    Karl Clark and Sidney Blair build prototype hot water separation plants.

    Oil sands separation plant at Dunvegan Yards, Edmonton, 1925
    Source: Provincial Archives of Alberta, A3526

  • Prospectus for the International Bitumen Company, n.d., Source:	Provincial Archives of Alberta, PR1971.0356.544a,b.ProspectusOf.IBC.1

    International Bitumen Company Ltd. is incorporated.

    Prospectus for the International Bitumen Company Ltd., n.d.
    Source: Provincial Archives of Alberta, PR1971.0356.544a,b.ProspectusOf.IBC.1

  • Oil sands separation plant on the Clearwater River, 1930, Source:	Provincial Archives of Alberta, A3536

    Karl Clark’s hot water separation plant moves to the Clearwater River, near Fort McMurray.

    Oil sands separation plant on the Clearwater River, 1930
    Source: Provincial Archives of Alberta, A3536

  • Diagram of the process patented by Clark in 1929, Source: Canadian Intellectual Property Office, Patent 289058

    Karl Clark is issued Patent 289058 for “Bituminuous [sic] Sand Processing”.

    Diagram of the process patented by Clark in 1929
    Source: Canadian Intellectual Property Office, Patent 289058

  • Fitzsimmons' separation plant, Bitumount, ca. 1930, Source: Provincial Archives of Alberta, A3383

    Robert Fitzsimmons builds his first separation plant at Bitumount.

    Fitzsimmons’s separation plant, Bitumount, ca. 1930
    Source: Provincial Archives of Alberta, A3383

  • New plant at Bitumount, n.d., Source: Provincial Archives of Alberta, A3378

    Robert Fitzsimmons builds a new plant designed to produce 200 barrels of oil per day, but it runs for only a short while.

    New plant at Bitumount, n.d.
    Source: Provincial Archives of Alberta, A3378

  • Diagram of Fitzsimmons' patented separation process, 1932, Source:	Canadian Intellectual Property Office, Patent 326747

    Robert Fitzsimmons is issued Patent 326747 for a “Process and Apparatus for Recovering Bitumen.”

    Diagram of Fitzsimmons’s patented separation process, 1932
    Source: Canadian Intellectual Property Office, Patent 326747

  • The International Bitumen Company plant, Bitumount, ca. 1937, Source: Provincial Archives of Alberta, PAA A3375

    Robert Fitzsimmons builds a refinery at Bitumount.

    The International Bitumen Company Ltd. plant, Bitumount, ca. 1937
    Source: Provincial Archives of Alberta, PAA A3375

  • Fitzsimmons (left) shows Champion the oil sands at Bitumount, n.d., Source: University of Alberta Archives, 83-160-113

    Montreal financier Lloyd R. Champion buys controlling interest in International Bitumen Company Ltd. and changes name to Oil Sands Ltd.

    Fitzsimmons (left) shows Champion the oil sands at Bitumount, n.d.
    Source: University of Alberta Archives, 83-160-113

  • Ernest Manning in 1943, Source: Provincial Archives of Alberta, A483

    Ernest Manning, Premier of Alberta, announces a loan of $250,000 to Oil Sands Ltd. to build a prototype oil sands separation plant at Bitumount.

    Ernest Manning in 1943
    Source: Provincial Archives of Alberta, A483

  • Alberta Government Oil Sands Project, Bitumount, 1952, Source: University of Alberta Archives, 91-137-127

    Agreement with Oil Sands Ltd. is cancelled. The Bitumount project becomes known as the Alberta Government Oil Sands Project.

    Alberta Government Oil Sands Project, Bitumount, 1952
    Source: University of Alberta Archives, 91-137-127

  • Diagram of process patented by Clark in 1948, Source: Canadian Intellectual Property Office, Patent 448231

    Karl Clark is issued Patent 448231 for “Extracting Oil from Bituminous Sand.”

    Diagram of process patented by Clark in 1948
    Source: Canadian Intellectual Property Office, Patent 448231

  • Karl Clark at the completed Bitumount plant, n.d., Source: Provincial Archives of Alberta, PA410.3

    Alberta Government Oil Sands Project plant at Bitumount is completed.

    Karl Clark at the completed Bitumount plant, n.d.
    Source: Provincial Archives of Alberta, PA410.3

  • Cover of Blair's Report on the Alberta Bituminous Sands, 1950, Source: Provincial Archives of Alberta, PR1971.0345.box24.503

    Blair Report indicates that developing the oils sands could be profitable.

    Cover of Sidney Blair’s Report on the Alberta Bituminous Sands, 1950
    Source: Provincial Archives of Alberta, PR1971.0345.box24.503

  • Poster on the University of Alberta Campus, 1951, Source: University of Alberta Archives, 91-137-122

    Over one hundred delegates attend the Athabasca Oil Sands Conference at the University of Alberta.

    Poster on the University of Alberta Campus, 1951
    Source: University of Alberta Archives, 91-137-122

  • Bitumount, ca. 1949-1950, Source: Glenbow Archives, pa-1599-451-2

    Government of Alberta puts the Bitumount plant and 5,784 acres up for sale, but does not receive any adequate bids. The plant remains non-operational.

    Bitumount, ca. 1949-1950
    Source: Glenbow Archives, pa-1599-451-2

  • Diagram of Fitzsimmons’ patented 1953 separation process, Source: Canadian Intellectual Property Office, Patent 493081

    Robert Fitzsimmons is issued Patent 493081 for a “Process for Recovering Bitumen from Tar Sands.”

    Diagram of Fitzsimmons’s patented 1953 separation process
    Source: Canadian Intellectual Property Office, Patent 493081

  • The Bitumount site became overgrown in the years following its abandonment. Source: Historic Resources Management, DSC_1720

    Bitumount plant is sold, but no significant development occurs and it is finally abandoned in 1958.

    The Bitumount site became overgrown in the years following its abandonment.
    Source: Historic Resources Management, DSC_1720

  • Sign at the Bitumount site, 1980s, Source: Historic Resources Management, DSC_5896

    Bitumount is designated a Provincial Historic Resource.

    Sign at the Bitumount site, 1980s
    Source: Historic Resources Management, DSC_5896

Play Timeline

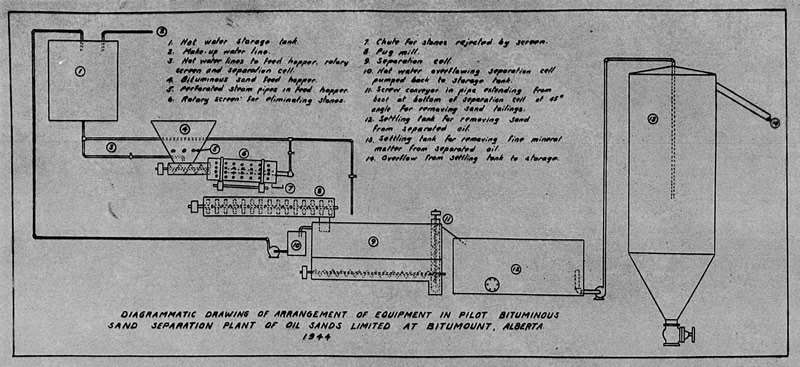

Oil Sands Ltd. Plant in 1944

Karl Clark was probably the author of a 1944 report that described Robert Fitzsimmons’s separation plant in its final form. The process he found can be summarized in ten points:

  • An elevated wooden tank provided hot water to the system.
  • Oil sand was dumped into a feed hopper shaped like an upside-down pyramid with the point cut off.
  • Steam was added to heat the sand to help it to flow out the hole at the bottom of the hopper.
  • Hot water was added to the sand as it was passed to a feed screw below the hopper, which moved the heated, dampened sand to the next step of the process.
  • The wetted sand next entered a rotary screen, where it was sprayed with more water. The sand passed through holes in the screen, but rocks and debris were removed from the process.
  • The sand then entered a pug mill designed to further mix the sand and water and break down any small lumps.
  • Next, the sand and water moved on to a separation tank where sand could settle to the bottom, and oil could rise to the top. Skimming rakes pushed the oil off the top of the water, and over the side of the tank. Sand was removed from the bottom of the tank.
  • The skimmed oil ran into a wooden settling tank where further sand could settle to the bottom. A pump removed the oil from above the settled sand to a second, cylindrical steel settling tank.
  • Every so often, the process would have to be stopped, so that as much oil as possible could be pumped from the wooden settling tank, and the sand emptied from an opening in the bottom of the tank.
  • The steel settling tank was allowed to fill up with oil. Fine mineral matter settled to the bottom, where it could be drained off. Oil travelled to storage tanks from an overflow near the top of the tank.

A variety of problems were encountered in this system:

  • The rotary screen not only eliminated rocks, it excluded lumps of oil sand.
  • The wooden settling tank filled quickly with sand, requiring frequent shut-downs during which it was emptied. Considerable oil was also lost in this process.
  • The boilers that heated the water and powered the plant were supposed to run on oil separated from the sand. Since the oil was quite gritty, it frequently wrecked the pumps that fed fuel to boilers. Wood was used instead, but this didn’t work well.
  • Water used in the plant was supposed to be re-circulated and reused, but it quickly got dirty and had to be replaced.
  • About 20% of the oil in the oil sand was lost during the separation process.

On the bright side, the “feed hopper performed remarkably well,” and the “settling of the sand from the oil was done in a crude way which worked surprisingly well.”
