Laying Gas Pipeline
Gas Mask, 1955
Tom Adams and Stan Jones
  • Gas Town of the West<br/> Source: Image courtesy of Peel’s Prairie Provinces, a digital initiative of the University of Alberta, PC010811

    Alberta’s first natural gas discovery in Langevin eventually leads to the designation of Medicine Hat as the “Gas Town of the West.”

    Gas Town of the West
    Source: Image courtesy of Peel’s Prairie Provinces, a digital initiative of the University of Alberta, PC010811

  • Gas well blowing at Bow Island, Alberta<br/> Source: Glenbow Archives, NA-4048-4

    At Bow Island, Alberta, the largest gas well drilled in Canada to date is directed by Eugene Coste, the “father of the natural gas industry.”

    Gas well blowing at Bow Island, Alberta
    Source: Glenbow Archives, NA-4048-4

  • Pipe for gas line, Bow Island area, Alberta, 1913 Source: Glenbow Archives, NA-4048-1

    Eugene Coste builds a 270-km (168-mi.) long pipeline, one of the longest and largest pipelines at that time, to carry Bow Island gas to Calgary and Lethbridge.

    Pipe for gas line, Bow Island area, Alberta, 1913
    Source: Glenbow Archives, NA-4048-1

  • Turner Valley Discovery Well Blowing, 1914<br/>Source: Provincial Archives of Alberta, P1883

    Natural gas wet with condensate is first discovered in the Cretaceous level at Turner Valley with the Dingman No. 1 well by Calgary Petroleum Products, the company originally founded by William Stewart Herron.

    Turner Valley Discovery Well Blowing, 1914
    Source: Provincial Archives of Alberta, P1883

  • Edmonton Gas Well, Viking, Alberta, ca. 1914<br/> Source: Glenbow Archives, NA-1328-66092

    Edmonton finds a natural gas supply in Viking, Alberta, but delays development due to war-related anxieties.

    Edmonton Gas Well, Viking, Alberta, ca. 1914
    Source: Glenbow Archives, NA-1328-66092

  • Original Royalite absorption, compression and scrubbing plant, ca. 1926<br/> Source: Provincial Archives of Alberta, P1882

    Royalite Oil Company Ltd., a wholly-owned subsidiary of Imperial Oil, gains entry to Turner Valley and begins an aggressive campaign to dominate petroleum production there.

    Original Royalite absorption, compression and scrubbing plant, ca. 1926
    Source: Provincial Archives of Alberta, P1882

  • Pipeline at MacDougall Avenue, Edmonton, Alberta, 1923<br/> Source: Glenbow Archives, ND-3-2062

    Edmonton, Alberta, receives its first delivery of natural gas from the Viking-Kinsella field that had been discovered in 1914.

    Pipeline at MacDougall Avenue, Edmonton, Alberta, 1923
    Source: Glenbow Archives, ND-3-2062

  • Burning Gas at Royalite No. 4, Hell’s Half Acre, Turner Valley, Alberta, 1924<br/> Source: Glenbow Archives, ND-8-430

    Royalite Oil punctures the gas condensate reservoir in the Mississippian rock formation at Turner Valley, and Royalite No. 4 erupts in fire.

    Burning Gas at Royalite No. 4, Hell’s Half Acre, Turner Valley, Alberta, 1924
    Source: Glenbow Archives, ND-8-430

  • In December 1929, Mackenzie King signs natural resources transfer agreement prior to the passage of legislation in 1930<br/> Source: Provincial Archives of Alberta, A10924

    The Canadian federal government transfers control of natural gas and other natural resources to the provincial Government of Alberta through the Natural Resources Transfer Acts of 1930.

    In December 1929, Mackenzie King signs natural resources transfer agreement prior to the passage of legislation in 1930.
    Source: Provincial Archives of Alberta, A10924

  • An Act for the Conservation of the Oil and Gas Resources of the Province of Alberta<br/> Source: <em>The Oil and Gas Conservation Act</em>, SA 1938, c. 15

    Oil and Gas Resources Conservation Act becomes law, and the Petroleum and Natural Gas Conservation Board, now the Energy Utilities Board, is formed as the regulatory authority for all gas and oil operations.

    An Act for the Conservation of the Oil and Gas Resources of the Province of Alberta
    Source: The Oil and Gas Conservation Act, SA 1938, c. 15

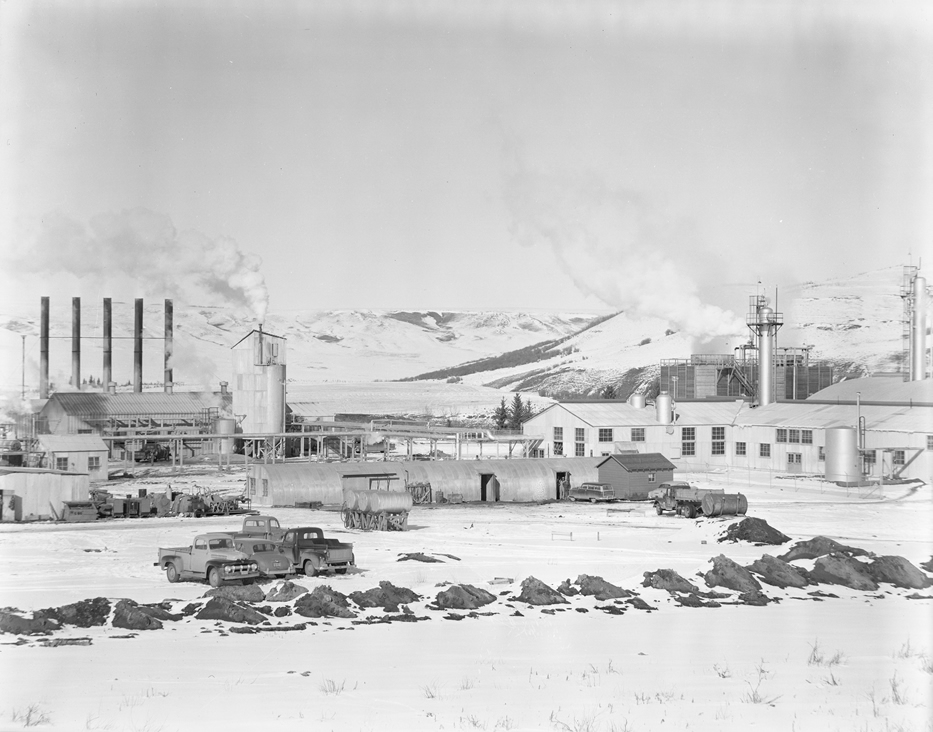

  • Shell Oil Jumping Pound Gas plant, 1952<br/> Source Provincial Archives of Alberta, P3009

    The largest gas reservoir in Canada at the time of discovery, the Jumping Pound field becomes a symbol of the need to resolve the stalemate over whether or not Alberta should export its natural gas; without adequate markets, it remains shut in until 1951.

    Shell Oil Jumping Pound Gas plant, 1952
    Source Provincial Archives of Alberta, P3009

  • But of course! Gas The Modern Fuel! In the years following World War II, the development and use of natural gas skyrockets due, in part, to rigorous marketing.<br/> Source: City of Edmonton Archives, EA-275-1776

    Efforts to promote natural gas as a safe, clean alternative to coal help the market expand rapidly, and large-scale processing and pipeline projects are constructed to serve the growing market.

    But of course! Gas The Modern Fuel! In the years following World War II, the development and use of natural gas skyrockets due, in part, to rigorous marketing.
    Source: City of Edmonton Archives, EA-275-1776

  • Handling sulfur at Madison natural gas facility, Turner Valley, 1952<br/> Source: Provincial Archives of Alberta, P2973

    In 1952, facilities in both Turner Valley and Jumping Pound begin to convert the toxic hydrogen sulfide in sour gas into benign elemental sulfur, and by the 1970s Canada becomes the largest exporter of sulfur in the world.

    Handling sulfur at Madison natural gas facility, Turner Valley, 1952
    Source: Provincial Archives of Alberta, P2973

  • <em>An Act to Incorporate a Gas Trunk Pipe Line Company to Gather and Transmit Gas within the Province</em><br/> Source: <em>The Alberta Gas Trunk Line Company Act</em>, SA 1954, c. 37

    Alberta Trunk Line Company is established in order to gather and transmit Alberta’s natural gas for domestic consumption as well as for export outside of the province.

    An Act to Incorporate a Gas Trunk Pipe Line Company to Gather and Transmit Gas within the Province
    Source: The Alberta Gas Trunk Line Company Act, SA 1954, c. 37

  • TransCanada Pipeline<br/> Source: Provincial Archives of Alberta, P1355

    TransCanada Pipeline exports the first gas piped to eastern Canada over a single pipeline, longer than any other single length of pipeline in North America at that time.

    TransCanada Pipeline
    Source: Provincial Archives of Alberta, P1355

  • Tom Adams (l) and Stan Jones (r)<br/> Source: Courtesy of Gwen Blatz

    Tom Adams and Stan Jones found the Meota Gas Co-operative, the first in what becomes a widespread movement to provide gas service throughout Alberta’s rural areas.

    Tom Adams (l) and Stan Jones (r)
    Source: Courtesy of Gwen Blatz

  • Just relax...we're just going to take a sample. November 14, 1980<br/> Source: Glenbow Archives, M-8000-710

    Prime Minister Trudeau introduces the national Energy Program (NEP), which sets prices for oil and gas well below international prices.

    “Just relax...we’re just going to take a sample.” November 14, 1980
    Source: Glenbow Archives, M-8000-710

  • Amoco sour gas blowout at Lodgepole near Drayton Valley, 1982<br/> Source: Provincial Archives of Alberta, J3747-1

    The Lodgepole sour gas blowout smells up the air for weeks, highlighting a growing conflict between the desire for economic development and the need to safeguard the public.

    Amoco sour gas blowout at Lodgepole near Drayton Valley, 1982
    Source: Provincial Archives of Alberta, J3747-1

  • Tied in coal bed methane (CBM) well, Ponoka, Alberta<br/> Source: Courtesy of Encana Corporation

    As conventional sources of natural gas have matured and declined, the industry has increasingly focused its efforts on developing unconventional gas resources such as shale gas, tight gas and coal bed methane.

    Tied in coal bed methane (CBM) well, Ponoka, Alberta
    Source: Courtesy of Encana Corporation

Play Timeline

Jumping Pound

At the time it was discovered, the natural gas field at Jumping Pound, 30 km
(19 mi.) west of Calgary, near Cochrane, Alberta, was the largest gas reservoir in Canada. That is not, however, all that made the Jumping Pound site significant. This gas field, deep in the Rocky Mountain foothills, was also the first to be discovered as a result of seismic mapping and the first to undertake sulfur reclamation as a way to sweeten its hazardous sour gas.

Exploration in this area had been initiated by independent oilman R.A. Brown—the same Brown who had struck oil in Turner Valley in 1936 with Royalties No. 1. After several fruitless years of exploration, Brown sold his rights to Shell Oil in 1942. Shell then began drilling and, just before Christmas of 1944, hit gas that emerged wet and sour from the then-deepest well in Canada.

Despite the apparent size of the Jumping Pound reservoir, Shell found it necessary to put its development on hold; the market remained limited due to war-related issues as well as to Alberta’s refusal to export its natural gas. Once the processing necessary to transform the wet, sour gas into a marketable product seemed feasible, Shell signed a contract with Canadian Western Natural Gas (now ATCO) agreeing to build the processing plant while Canadian Western would construct a pipeline to connect to the Calgary market. The processing plant began operation in 1951 and quickly gained the reputation of being Canada’s experimental sour gas lab as much of the understanding of sour gas came from practical application there.

The improved understanding of sour gas was gained through the many inventive solutions plant operators had to develop for the difficulties that plagued Jumping Pound from the outset. As always, in Alberta, the weather figured prominently among these challenges. Designed by a California company accustomed to a more temperate southern climate, the plant lacked enclosed buildings. The hazards of such an open plan were revealed by the freak blizzard that swept across southern Alberta in June 1951, two months after the plant began operations. Employees scrambled to thaw pipes, hoses and even boilers. The following winter was equally ferocious, with frigid temperatures contributing to numerous interruptions in plant operations. Fortunately, plant employees

rose to the many challenges they faced, developing approaches for dealing with high pressure sour gas that have since become standard practice.

The summer after the facility initially began operations, the sulfur plant was completed, making it the first sulfur plant in Canada. Using the modified Claus process, Jumping Pound produced 32 tonnes (35 tons) of elemental sulfur a day, a by-product essential to the West Coast’s pulp and paper industries. Shell Canada continues to own and operate the Jumping Pound complex, which has expanded considerably since 1944. Three additional gas fields have been discovered and plant capacity now permits efficient recovery of ethane, butane and propane in addition to sulfur.
