Sidney Ells at Fort McMurray
Dr. Karl Clark in his oil sands lab
Bitumen separated at the International Bitumen Company Ltd.
  • Tar Sands, Athabasca River, Alberta, n.d. Source: Geological Survey of Canada/Library and Archives Canada, PA-038166

    The Geological Survey of Canada initiates exploration of the oil sands of the Athabasca region on the part of the federal government.

    Tar Sands, Athabasca River, Alberta, n.d.
    Source: Geological Survey of Canada/Library and Archives Canada, PA-038166

  • Drilling plant at Victoria, Alberta, 1898. Source: Glenbow Archives, NA-302-11

    Drilling in search of a basement reservoir of oil is the initial focus of development in Alberta’s oil sands.

    Drilling plant at Victoria, Alberta, 1898
    Source: Glenbow Archives, NA-302-11

  • Alfred von Hammerstein on horseback, ca. 1900. Source: Glenbow Archives, PA-3920-1

    Alfred von Hammerstein is the first independent entrepreneur to attempt to capitalize on the petroleum riches of the oil sands.

    Alfred von Hammerstein on horseback, ca. 1900
    Source: Glenbow Archives, PA-3920-1

  • Sidney Ells at Clearwater River tar sands plant, August 1931. Source: Canada. Dept. of Mines and Technical Surveys/Library and Archives Canada, PA-014454

    The federal government renews its investigation of the oil sands by sending Sidney Ells to Athabasca to conduct field and survey work.

    Sidney Ells at Clearwater River tar sands plant, August 1931
    Source: Canada. Dept. of Mines and Technical Surveys/Library and Archives Canada, PA-014454

  • View of demonstration experimental pavement laid in Edmonton, Alberta, 1915. Source: Provincial Archives of Alberta, A3399

    Throughout the 1920s, efforts to commercially develop the oil sands focused upon its possible use as a paving surface for roads and sidewalks.

    View of demonstration experimental pavement laid in Edmonton, Alberta, 1915
    Source: Provincial Archives of Alberta, A3399

  • Henry Marshall Tory, the first president of the University of Alberta, was instrumental in founding the Scientific and Industrial Research Council of Alberta, n.d. Source: University of Alberta Archives, 69-152-003

    The Scientific and Industrial Research Council of Alberta is founded.

    Henry Marshall Tory, the first president of the University of Alberta, was instrumental in founding the Scientific and Industrial Research Council of Alberta, n.d.
    Source: University of Alberta Archives, 69-152-003

  • Karl Clark and Sidney Blair built a model oil sands separation plant in the basement of the University of Alberta power plant. Source: University of Alberta Archives, 69-97-457

    Karl Clark builds his first model hot-water separation plant.

    Karl Clark and Sidney Blair built a model oil sands separation plant in the basement of the University of Alberta power plant.
    Source: University of Alberta Archives, 69-97-457

  • Absher’s set-up on Saline Creek, near Fort McMurray, 1929. Source: University of Alberta Archives, 77-128-27

    Jacob Absher attempts in situ extraction of oil from oil sands.

    Absher’s set-up on Saline Creek, near Fort McMurray, 1929
    Source: University of Alberta Archives, 77-128-27

  • Prospectus for the International Bitumen Company Ltd., n.d. Source: Provincial Archives of Alberta, PR1971.0356.544a,b.ProspectusOf.IBC.1

    Robert Fitzsimmons founds the International Bitumen Company Ltd.

    Prospectus for the International Bitumen Company Ltd., n.d.
    Source: Provincial Archives of Alberta, PR1971.0356.544a,b.ProspectusOf.IBC.1

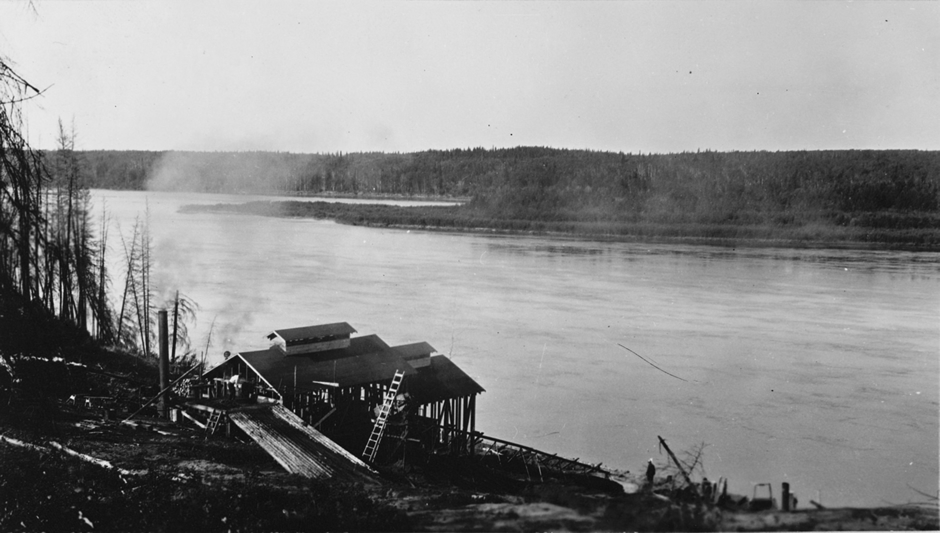

  • Karl Clark’s third model plant is relocated to the Clearwater River. Sidney Ells is placed in charge of mining operations. Source: University of Alberta Archives, 77-128-13

    Federal and provincial governments cooperate to develop Clearwater River oil sands separation plant.

    Karl Clark’s third model plant is relocated to the Clearwater River. Sidney Ells is placed in charge of mining operations.
    Source: University of Alberta Archives, 77-128-13

  • Max Ball, ca. 1940. Source: University of Alberta Archives, 89-120-008

    Max Ball, J.M. McClave and B.O. Jones of Denver, Colorado, organize Abasand Oils Ltd.

    Max Ball, ca. 1940
    Source: University of Alberta Archives, 89-120-008

  • Abasand Oils Ltd. plant, ca. 1941. Source: Provincial Archives of Alberta, PR1985.0333.DevelopmentofAthabaska.O.S.DeskCopy.021 - detail

    Construction of Abasand Oils Ltd. oil sands separation plant on Horse River is completed.

    Abasand Oils Ltd. plant, ca. 1941
    Source: Provincial Archives of Alberta, PR1985.0333.DevelopmentofAthabaska.O.S.DeskCopy.021 - detail

  • Little was left of the Abasand plant after the fire. Source: University of Alberta, 84-25-132

    Abasand Oils Ltd. oil sands separation plant burns down.

    Little was left of the Abasand plant after the fire.
    Source: University of Alberta, 84-25-132

  • The completed Alberta Government Oil Sands Project plant, ca. 1950. Source: University of Alberta, 91-137-070 - detail

    Alberta Government Oil Sands Project Plant at Bitumount succeeds in separating crude oil from oil sands.

    The completed Alberta Government Oil Sands Project plant, ca. 1950
    Source: University of Alberta, 91-137-070 - detail

  • Cover of Sidney Blair’s Report on the Alberta Bituminous Sands commissioned by the Government of Alberta, 1950. Source: Provincial Archives of Alberta, PR1971.0345.box24.503

    Alberta government issues report on oil sands potential.

    Cover of Sidney Blair’s Report on the Alberta Bituminous Sands commissioned by the Government of Alberta, 1950
    Source: Provincial Archives of Alberta, PR1971.0345.box24.503

  • Sidney Kidder, Sidney Blair, George Hume, and Elmer Adkins (l to r) at the Edmonton portion of the Athabasca Oil Sands Conference at the University of Alberta, 1951. Source: Provincial Archives of Alberta, PA3152

    Athabasca Oil Sands Conference establishes an Alberta oil sands policy and stimulates commercial interest in the resource.

    Sidney Kidder, Sidney Blair, George Hume, and Elmer Adkins (l to r) at the Edmonton portion of the Athabasca Oil Sands Conference at the University of Alberta, 1951
    Source: Provincial Archives of Alberta, PA3152

  • Montreal-businessman Lloyd Champion incorporates Great Canadian Oil Sands Ltd. (GCOS) in 1953. Champion later sells most of his shares in the company before the GCOS plant opens under Sun Oil Company’s financing and leadership. Source: Courtesy of University of Alberta Archives, #83-160

    Great Canadian Oil Sands Ltd. incorporates.

    Montreal-businessman Lloyd Champion incorporates Great Canadian Oil Sands Ltd. (GCOS) in 1953. Champion, shown here ca. 1960s, later sells most of his shares in the company before the GCOS plant opens under Sun Oil Company’s financing and leadership.
    Source: University of Alberta Archives, #83-160

  • A cross-section of the Cold Lake area deposit shows the depth of the oil sands layer that makes the bitumen in this deposit recoverable only through in situ extraction methods. Source: Courtesy of Alberta Innovates

    Early in situ pilot tests begin on the Peace River and Cold Lake area oil sands deposits; underground experiments along the Cold Lake deposit lead to the development of the Cyclical Steam Stimulation (CCS) bitumen recovery method.

    A cross-section of the Cold Lake area deposit shows the depth of the oil sands layer that makes the bitumen in this deposit recoverable only through in situ extraction methods.
    Source: Courtesy of Alberta Innovates

  • Great Canadian Oil Sands Ltd. plant during its first week of operation, north of Fort McMurray, Alberta, 1967. Source: Courtesy of Suncor

    Great Canadian Oil Sands Ltd. begins production.

    Great Canadian Oil Sands Ltd. plant during its first week of operation, north of Fort McMurray, Alberta, 1967
    Source: Courtesy of Suncor

  • Canada’s Prime Minister Pierre Elliott Trudeau and Alberta Premier Peter Lougheed, November 1, 1977; Trudeau and Lougheed clash over oil sands ownership, export taxation and natural resource revenue sharing arrangements. Source: Provincial Archives of Alberta, J3672.2

    Global oil crisis heightens conflict between Alberta and Ottawa.

    Canada’s Prime Minister Pierre Elliott Trudeau and Alberta Premier Peter Lougheed, November 1, 1977; Trudeau and Lougheed clash over oil sands ownership, export taxation and natural resource revenue sharing arrangements.
    Source: Provincial Archives of Alberta, J3672.2

  • A map of Alberta shows AOSTRA/industry <em>in situ</em> pilot projects that emerge in the 1970s and 1980s.<br/> Source: Courtesy of Alberta Innovates

    Alberta Oil Sands Technology and Research Authority (AOSTRA) forms as a Crown corporation.

    A map of Alberta shows AOSTRA/industry in situ pilot projects that emerge in the 1970s and 1980s
    Source: Courtesy of Alberta Innovates

  • A news story published in the Winnipeg Tribune on February 4, 1975, reports the anticipated agreement that enables completion of the Syncrude consortium’s mega-project. Source: The Winnipeg Tribune

    Historic Winnipeg meeting between government and industry leads to agreement on Syncrude consortium mega-project.

    A news story published in the Winnipeg Tribune on February 4, 1975, reports the anticipated agreement that enables completion of the Syncrude consortium’s mega-project.
    Source: The Winnipeg Tribune

  • Syncrude operations near Mildred Lake north of Fort McMurray, late 1970s. Source: Courtesy of Syncrude Canada Ltd.

    Syncrude opens oil sands mining and bitumen upgrading mega-project in northeastern Alberta.

    Syncrude operations near Mildred Lake north of Fort McMurray, late 1970s
    Source: Courtesy of Syncrude Canada Ltd.

  • AOSTRA-sponsored technology develops through the late 1970s and early 1980s; the Cyclical Steam Stimulation (CCS) bitumen recovery process along the Peace River deposit injects steam through one well below the base of the oil sands atop the water-sand layer, resulting in a heat zone that mobilizes the overlying bitumen so that it can be pumped to the surface through a second production well. Source: Courtesy of Alberta Innovates

    Partnership between industry and the Alberta Oil Sands Technology and Research Authority (AOSTRA) leads to commercialization of in situ recovery methods.

    AOSTRA-sponsored technology develops through the late 1970s and early 1980s; the Cyclic Steam Stimulation bitumen recovery process injects steam through one well below the base of the oil sands, resulting in a heat zone that mobilizes the bitumen so that it can be pumped to the surface through a second production well.
    Source: Courtesy of Alberta Innovates

  • A diagram of AOSTRA’s Underground Test Facility operations. Source: Courtesy of Alberta Innovates

    Alberta Oil Sands Technology and Research Authority (AOSTRA) formally opens its Underground Test Facility to field test in situ oil sands mining theory including the industry-changing Steam-Assisted Gravity Drainage method (SAGD).

    A diagram of AOSTRA’s Underground Test Facility operations
    Source: Courtesy of Alberta Innovates

Play Timeline

Robert Fitzsimmons and the International Bitumen Company Ltd.

Robert Cosmas Fitzsimmons (1881-1971) is one of the most intriguing figures in the history of the oil sands. He was born in Prince Edward Island and came, after years in the United States, to the Athabasca River in 1922. Prior to arriving in northern Alberta, he had no experience with the oil business. Despite this, he managed to play an important role in the development of the oil sands.

Fitzsimmons was convinced he could make a go of it in the oil sands. For twenty years he worked away, trying to raise capital and build his business. Initially, he thought that if he drilled in the right place, he would strike a pool of oil that could be pumped out of the ground like conventional oil. After years of disappointment, he changed tactics and started trying to develop a process to separate the oil from the sand. He incorporated the International Bitumen Company Ltd. in 1927.

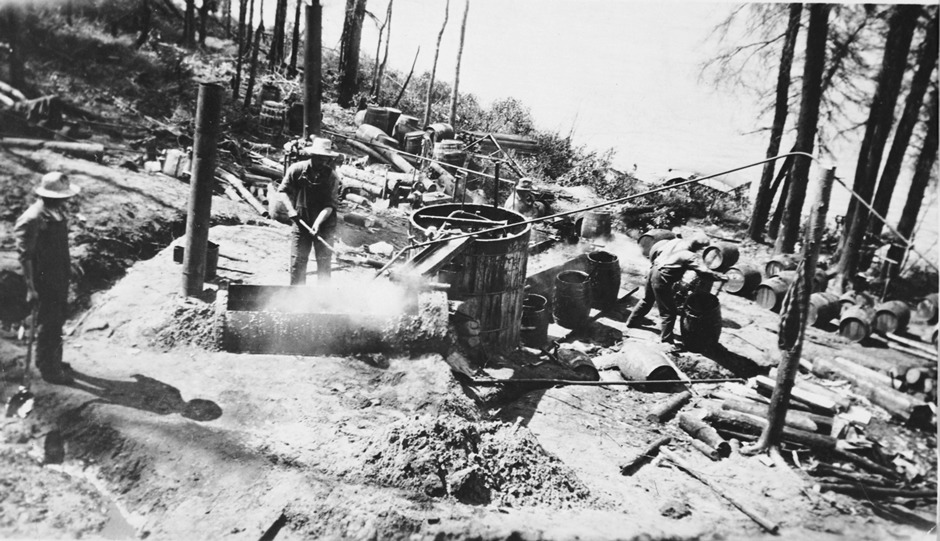

Having witnessed the success of Karl Clark’s hot water separation plant on the Clearwater River, Fitzsimmons built his own version in 1930 at a location he later named Bitumount. He was able to

separate some oil, which he attempted to market for roofing and paving as well as many other products. Fitzsimmons was granted a Canadian patent (# 326747) for his separation process in 1932, but tough economic times forced him to close down his plant.

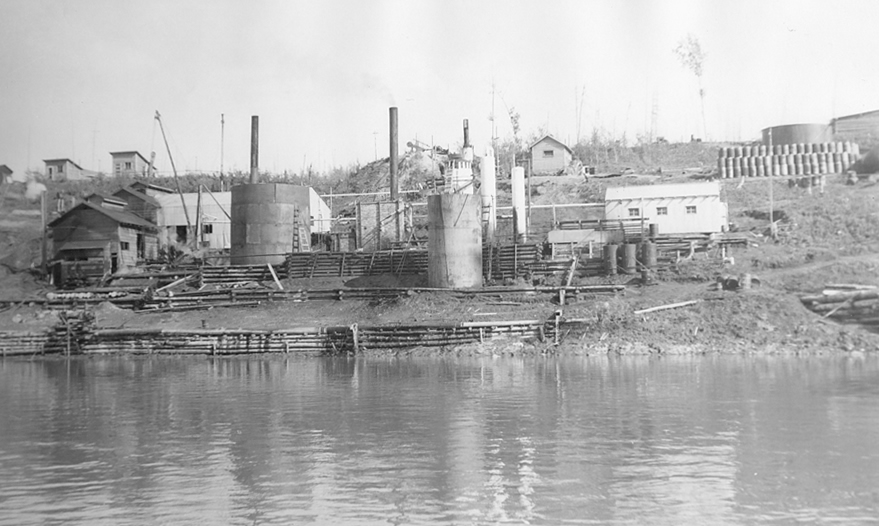

Within a few years, Fitzsimmons was back at Bitumount. To improve the reliability of the composition of the oil produced by the plant, and to enable him to broaden his product line, Fitzsimmons decided to add a small refinery to the Bitumount plant. In 1936 he hired a petroleum engineer, H. F. Everard, to build it, and then set out across the continent to raise money to pay for the expansion. Neither the fundraising nor the construction was a resounding success. Everard left the company in 1937, complaining that he hadn’t been paid. Fitzsimmons hired a replacement for Everard, and the plant was up and running late in 1938. It was not enough to keep the company going, however, and by 1940 the International Bitumen Company Ltd. was removed from Alberta’s corporate registry.

In spite of all the difficulties, Fitzsimmons did not give up. He was still convinced that his company had a future. It finally seemed like things were looking up when, in 1943, Fitzsimmons struck a deal with Montreal financier Lloyd Champion to recapitalize the Bitumount operation. Fitzsimmons helped to get his plant back into production, but in 1944 Champion decided to make a deal with the Government of Alberta to build a totally new operation on the Bitumount site.

Fitzsimmons, his plant, his process and his company were sidelined. After so

many years and so much effort, it was a bitter end to the adventure for Fitzsimmons. He lived to see the launch of the first full-scale industrial oil sands separation plant in 1967, but he never reaped any significant financial benefit from the oil sands business.

Posterity has recognized Fitzsimmons for his role as an oil sands entrepreneur and pioneer. In a field now dominated by large corporations, he was an individual with a vision and drive who managed to accomplish a great deal.
