International Bitumen Company Ltd. mine and plant
A 1947 flow diagram
Fractionating tower (centre)
  • Karl Clark at work on his prototype separation plant, 1929, Source: Glenbow Archives, ND-3-4596a

    Karl Clark begins his long career investigating Alberta’s oil sands.

    Karl Clark at work on his prototype separation plant, 1929
    Source: Glenbow Archives, ND-3-4596a

  • Robert Fitzsimmons at Bitumount, ca. 1920s, Source: Provincial Archives of Alberta, A3358

    Robert Cosmas Fitzsimmons visits the Athabasca River and purchases an oil lease.

    Robert Fitzsimmons at Bitumount, ca. 1920s
    Source: Provincial Archives of Alberta, A3358

  • Oil sands separation plant at Dunvegan Yards, Edmonton, 1925, Source: Provincial Archives of Alberta, A3526

    Karl Clark and Sidney Blair build prototype hot water separation plants.

    Oil sands separation plant at Dunvegan Yards, Edmonton, 1925
    Source: Provincial Archives of Alberta, A3526

  • Prospectus for the International Bitumen Company, n.d., Source:	Provincial Archives of Alberta, PR1971.0356.544a,b.ProspectusOf.IBC.1

    International Bitumen Company Ltd. is incorporated.

    Prospectus for the International Bitumen Company Ltd., n.d.
    Source: Provincial Archives of Alberta, PR1971.0356.544a,b.ProspectusOf.IBC.1

  • Oil sands separation plant on the Clearwater River, 1930, Source:	Provincial Archives of Alberta, A3536

    Karl Clark’s hot water separation plant moves to the Clearwater River, near Fort McMurray.

    Oil sands separation plant on the Clearwater River, 1930
    Source: Provincial Archives of Alberta, A3536

  • Diagram of the process patented by Clark in 1929, Source: Canadian Intellectual Property Office, Patent 289058

    Karl Clark is issued Patent 289058 for “Bituminuous [sic] Sand Processing”.

    Diagram of the process patented by Clark in 1929
    Source: Canadian Intellectual Property Office, Patent 289058

  • Fitzsimmons' separation plant, Bitumount, ca. 1930, Source: Provincial Archives of Alberta, A3383

    Robert Fitzsimmons builds his first separation plant at Bitumount.

    Fitzsimmons’s separation plant, Bitumount, ca. 1930
    Source: Provincial Archives of Alberta, A3383

  • New plant at Bitumount, n.d., Source: Provincial Archives of Alberta, A3378

    Robert Fitzsimmons builds a new plant designed to produce 200 barrels of oil per day, but it runs for only a short while.

    New plant at Bitumount, n.d.
    Source: Provincial Archives of Alberta, A3378

  • Diagram of Fitzsimmons' patented separation process, 1932, Source:	Canadian Intellectual Property Office, Patent 326747

    Robert Fitzsimmons is issued Patent 326747 for a “Process and Apparatus for Recovering Bitumen.”

    Diagram of Fitzsimmons’s patented separation process, 1932
    Source: Canadian Intellectual Property Office, Patent 326747

  • The International Bitumen Company plant, Bitumount, ca. 1937, Source: Provincial Archives of Alberta, PAA A3375

    Robert Fitzsimmons builds a refinery at Bitumount.

    The International Bitumen Company Ltd. plant, Bitumount, ca. 1937
    Source: Provincial Archives of Alberta, PAA A3375

  • Fitzsimmons (left) shows Champion the oil sands at Bitumount, n.d., Source: University of Alberta Archives, 83-160-113

    Montreal financier Lloyd R. Champion buys controlling interest in International Bitumen Company Ltd. and changes name to Oil Sands Ltd.

    Fitzsimmons (left) shows Champion the oil sands at Bitumount, n.d.
    Source: University of Alberta Archives, 83-160-113

  • Ernest Manning in 1943, Source: Provincial Archives of Alberta, A483

    Ernest Manning, Premier of Alberta, announces a loan of $250,000 to Oil Sands Ltd. to build a prototype oil sands separation plant at Bitumount.

    Ernest Manning in 1943
    Source: Provincial Archives of Alberta, A483

  • Alberta Government Oil Sands Project, Bitumount, 1952, Source: University of Alberta Archives, 91-137-127

    Agreement with Oil Sands Ltd. is cancelled. The Bitumount project becomes known as the Alberta Government Oil Sands Project.

    Alberta Government Oil Sands Project, Bitumount, 1952
    Source: University of Alberta Archives, 91-137-127

  • Diagram of process patented by Clark in 1948, Source: Canadian Intellectual Property Office, Patent 448231

    Karl Clark is issued Patent 448231 for “Extracting Oil from Bituminous Sand.”

    Diagram of process patented by Clark in 1948
    Source: Canadian Intellectual Property Office, Patent 448231

  • Karl Clark at the completed Bitumount plant, n.d., Source: Provincial Archives of Alberta, PA410.3

    Alberta Government Oil Sands Project plant at Bitumount is completed.

    Karl Clark at the completed Bitumount plant, n.d.
    Source: Provincial Archives of Alberta, PA410.3

  • Cover of Blair's Report on the Alberta Bituminous Sands, 1950, Source: Provincial Archives of Alberta, PR1971.0345.box24.503

    Blair Report indicates that developing the oils sands could be profitable.

    Cover of Sidney Blair’s Report on the Alberta Bituminous Sands, 1950
    Source: Provincial Archives of Alberta, PR1971.0345.box24.503

  • Poster on the University of Alberta Campus, 1951, Source: University of Alberta Archives, 91-137-122

    Over one hundred delegates attend the Athabasca Oil Sands Conference at the University of Alberta.

    Poster on the University of Alberta Campus, 1951
    Source: University of Alberta Archives, 91-137-122

  • Bitumount, ca. 1949-1950, Source: Glenbow Archives, pa-1599-451-2

    Government of Alberta puts the Bitumount plant and 5,784 acres up for sale, but does not receive any adequate bids. The plant remains non-operational.

    Bitumount, ca. 1949-1950
    Source: Glenbow Archives, pa-1599-451-2

  • Diagram of Fitzsimmons’ patented 1953 separation process, Source: Canadian Intellectual Property Office, Patent 493081

    Robert Fitzsimmons is issued Patent 493081 for a “Process for Recovering Bitumen from Tar Sands.”

    Diagram of Fitzsimmons’s patented 1953 separation process
    Source: Canadian Intellectual Property Office, Patent 493081

  • The Bitumount site became overgrown in the years following its abandonment. Source: Historic Resources Management, DSC_1720

    Bitumount plant is sold, but no significant development occurs and it is finally abandoned in 1958.

    The Bitumount site became overgrown in the years following its abandonment.
    Source: Historic Resources Management, DSC_1720

  • Sign at the Bitumount site, 1980s, Source: Historic Resources Management, DSC_5896

    Bitumount is designated a Provincial Historic Resource.

    Sign at the Bitumount site, 1980s
    Source: Historic Resources Management, DSC_5896

Play Timeline

Mining Operations in 1948

When plans for the new separation plant at Bitumount were being drawn up in 1945, Karl Clark went to inspect the proposed mine site. The area planned for the quarry was set back some distance from the riverbank. The camp buildings were to be situated to overlook the river. When Clark undertook some exploratory augering on the site, he discovered that the best location for mining the oil sands was actually where the camp was proposed to be. On his recommendation, the quarry operation took the spot reserved for the camp, where only 8 ft. (2.4 m), rather than the 60 ft. (18 m) of overburden at the original location, would need to be removed.

In 1948, W. E. Adkins noted that

The open pit mine, or quarry from which the Oil Sand is being removed has been opened South of the plant in a strip about 200 feet wide paralleling the river. The actual mine face is open to the river to facilitate drainage. Mining will be carried out by working a 10 to 12 foot face about 900 feet in length, the face being worked back from the river for a distance of 200 feet on each successive lift. At the present time an area approximately 500 feet long by 200 feet wide has been stripped while an additional area 400 feet long by 200 feet wide has been partially stripped.
It is considered that at least 30 feet of Oil Sand can be removed from the present mine without developing serious grades on the access roads. This represents approximately 200,000 cubic yards which should keep the present plant operating at capacity for about 20 months. At the end of that time a decision will have to be made as to whether to extend the mine in which case hauls will be longer or quite steep and drainage problems will develop at certain seasons of the year.

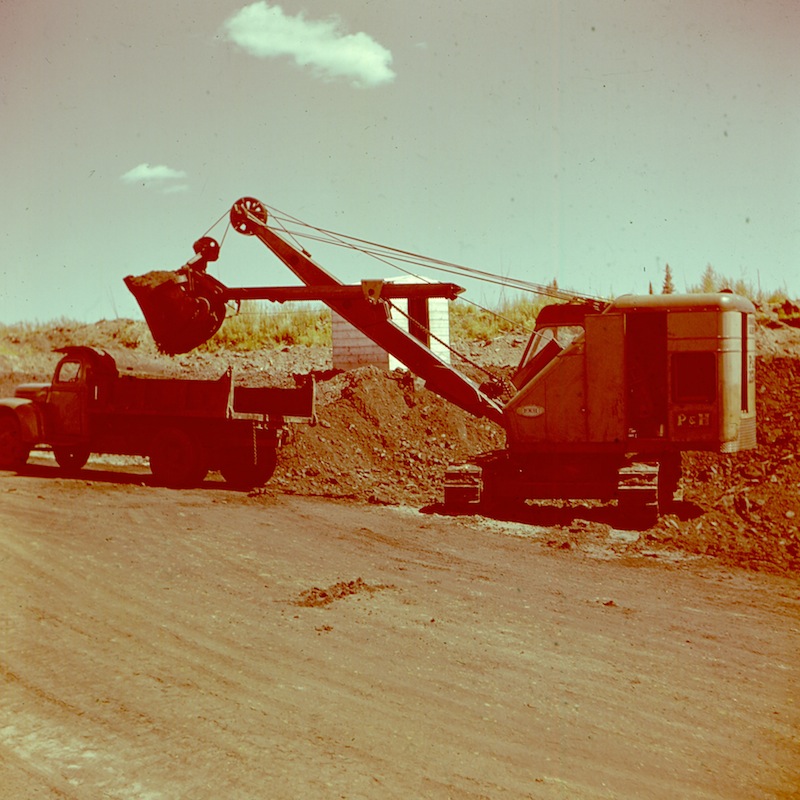

Mining equipment consists at present of a ¾ yard Combination Shovel and Dragline, a large tractor equipped with a 12 foot hydraulic bulldozer and 3-4 yard dump truck. [...] Experience to date indicates that this equipment can handle the mining satisfactorily. Under normal conditions sufficient sand for 24 hours operation can be mined in one eight hour shift, using two dump trucks. [...] In all upwards of 35,000 cubic yards of overburden and lean sand were removed from the mine prior to the commencement of operations.

Considerable work was needed to provide safe driving conditions for the trucks hauling 4 to 5 tons of oil sand per load. The topsoil in its original condition was unstable, so it was stripped down to the oil sand, and a gravel roadway built up between the quarry and the plant.

As it turned out, none of the challenges posed by ongoing, high volume or winter mining had to be dealt with, as Bitumount did not stay in operation for very long.
